QN-SW-430-Series
MULTIGIGABIT
Multigig
Downlinks
High Scale
Full Layer 3
Powerful
PoE Budget
All Ports PoE+
Selective PoE++ Ports
25G (QSFP)
Uplinks
25G(QSFP) Dedicated
Stacking Ports
Product Overview
- High-Performance Networking: Multigig downlinks, PoE+ and UPoE support, and dedicated 25G stacking ports ensure seamless connectivity and power for Wi-Fi 6/7 APs and high-power devices.
- Enterprise-Class Features: Supports VLAN types, OSPF v2/v3, VRRP, ISATAP, DHCP server, Storm control, and DoS prevention for robust network security and scalability.
- Flexible Management & Warranty: Manage via Cloud-hosted or on-premises Rudder NSC, GUI/CLI, and SNMP, with a three-year limited liability warranty from day one.
Full PoE | PoE | Non-PoE

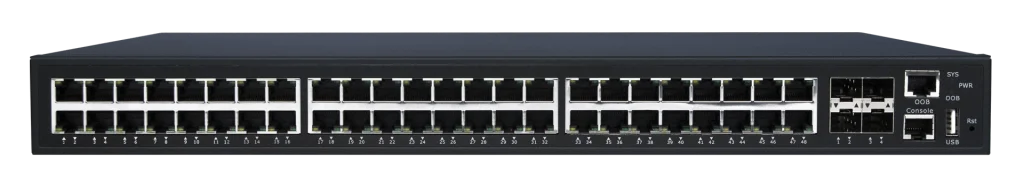

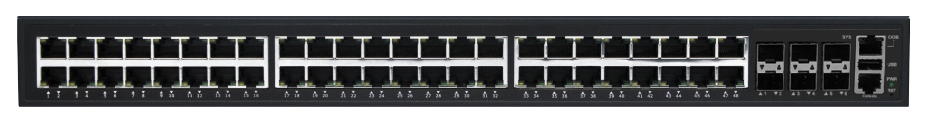

QN-SW-430-48 Port
Downlinks: 48×1/2.5G RJ45
Uplinks: 6(4+2*)x25G Fiber
Dedicated Stacking Ports: 2*x25G Fiber
Power Budget: Up to 1900W
With Redundant Power Supply and Fans
Full PoE | PoE | Non-PoE
QN-SW-430-24 Port
Downlinks: 24×1/2.5G RJ45
Uplinks: 6(4+2*)x25G Fiber
Dedicated Stacking Ports: 2*x25G Fiber
Power Budget: Up to 820W
With Redundant Power Supply and Fans
Simplified & Centralized Network Management :
Unified Management Stack for seamless deployment, monitoring and troubleshooting of wired and wireless networks.
Real-time Network Observability with dashboards and logs for traffic, security and device performance insights.
Optimized Operations to reduce downtime, boost performance, and enhance security across all network devices.
High-performance Architecture
Non-blocking Architecture
Forwarding Capacity
Network
Security
Up-to 402 Mpps Forwarding
Up-to 540 Gbps
Wire-Speed
High-Performance, Scalable & Secure Switching:
High-performance Architecture for Handling Diverse Workloads.
Non-blocking Architecture with up to 540 Gbps Wire-speed Switching.
Forwarding Capacity Ranging from 313 Mpps to 402 Mpps.
Network Security with 802.1x, MAC Authentication, and ACLs
Product Variants
| Product | RJ45 Downlinks | 1/10/25G Fiber Uplinks | 1/10/25G Fiber Dedicated Stacking Ports | Power Budget (Watts) | Max PoE(802.3af) | Max PoE(802.3at) | Max PoE++ (802.3bt) (60W) | Max PoE++ (802.3bt) (90W) | Redundant Power Supply |
|---|---|---|---|---|---|---|---|---|---|
|
QN-SW-430-48FP |
48 |
4+2* |
2* |
1900 Watt |
48 |
48 |
16 |
16 |
|
|
QN-SW-430-48 |
48 |
4+2* |
2* |
|
|
|
|
|
|
|
QN-SW-430-24FP |
24 |
4+2* |
2* |
820 Watt |
24 |
24 |
8 |
8 |
|
|
QN-SW-430-24 |
24 |
4+2* |
2* |
|
|
|
|
|
|
|
Models With MACsec |
|||||||||
|
QN-SW-430-48FP:M |
48 |
4+2* |
2*
|
1900 Watt |
48 |
48 |
16 |
16 |
|
|
QN-SW-430-48:M |
48 |
4+2* |
2* |
|
|
|
|
|
|
|
QN-SW-430-24FP:M |
24 |
4+2* |
2* |
820 Watt |
24 |
24 |
8 |
8 |
|
|
QN-SW-430-24:M |
24 |
4+2* |
2* |
|
|
|
|
|
|
